TERA-2 Electronic Component Tester

TERA-2 is a diagnostic device for various electronic components and radio parts. It is designed to verify technical specifications and identify potential faults.

Key advantages:

  • Wide range of supported components;
  • User-friendly, intuitive interface;
  • Short testing time;
  • Pulse measurement method (t_meas = 0.1 s);
  • Functionality testing under near nominal conditions;
  • High mobility.

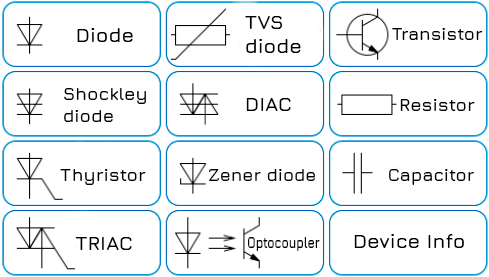

Wide range of tested elements:

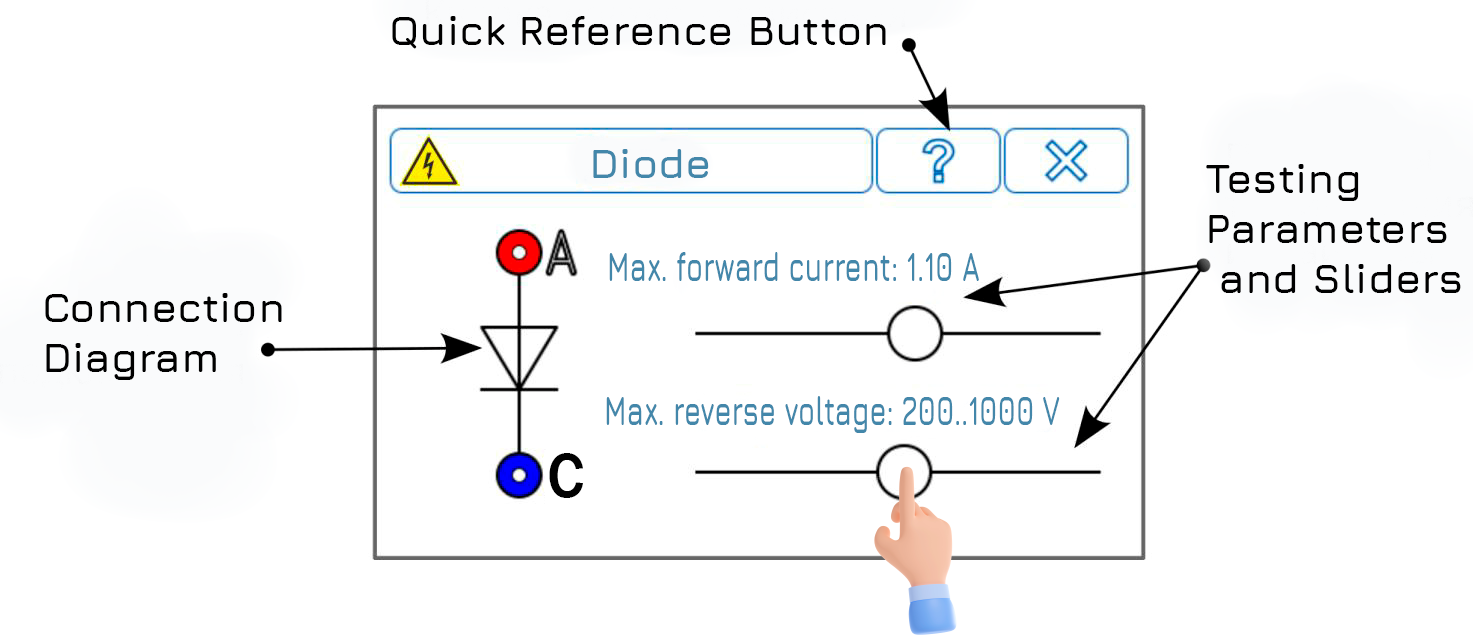

Ease of use

  1. Select the component type with a single tap on the screen icon.
  2. The connection diagram instantly appears on the screen.
  3. Simply adjust the sliders to set the nominal parameters.
  4. Color-coded connectors and wires ensure error-free connection.

Fast testing process

  • Pass/fail criteria for each component type are preloaded into the tester's memory.
  • Ergonomic test leads allow for quick and easy connection.

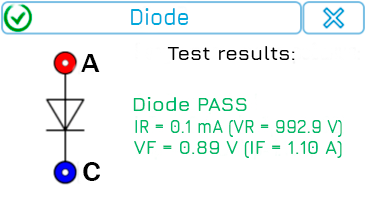

  • Test results are displayed immediately after pressing the «START" button.
  • Clear visual feedback: Green indicates a functional component (PASS), while red indicates a failed test.

Measurement modes

  • Vmax = 950 V (current limited to 20 mA).
  • I max = 10 A (voltage limited to 12 V).
  • Measurements are performed using short pulses (0.1 s duration).

This protects semiconductor devices from overheating while testing them at nominal parameters.

Mobility

  • The TERA-2 tester is housed in a waterproof, impact-resistant case.
  • Features an anti-slip handle for secure transport.
  • Stand-alone operation: no PC connection or specialized software required for data processing.
  • Weight: 7 kg.
